$10.00

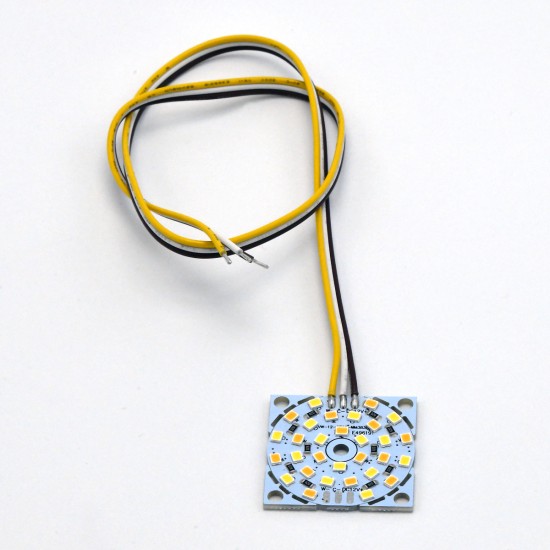

This is our first rigid mini-module to hit the market!

It is a 12Vdc 38mm x 38mm 95+CRI 2700K to 6000K Variable White module.

We think they will become so popular we have added them to our CORE PRODUCT lineup.

These are excellent for retrofitting existing fixtures or to simply use as a fixture on their own. They can be mounted by using a #6 pan head screw through the central hole or in any two of the four corners. It can alternately be mounted with an adhesive pad (Included.)

The square module can be clipped down to a 38mm diameter circular module quickly and easily for retrofits into circular areas. These are a fantastic way to change existing fixtures that are not camera safe or that don't have good colour rendering into camera safe high CRI fixtures.

Want to link multiple modules together and need more 2 channel starter wire? We stock that as a CORE PRODUCT.

This product is UL Listed in the US and Canada.

Check out the specifications tab for more information.

Power Input / Output
Power Input12Vdc
Connector and Adapter Specifcations
Input ConnectorSolder Pads, Includes 0.5m wire on one end
LED Engine Details
Sheet Length38mm
Sheet Width38mm
Colour Temperature2700K > 6000K
Colour Rendering Index (CRI)95+
Adhesive BackingIncluded VHB Pad
LED Emitter Wattage

2700K @ 2.75W
6000K @ 2.75W

LED Emitter Lumens

2700K @ 1230 lumens
6000K @ 1400 lumens

Certifications
Electrical CertificationscULus - E496191
Core Product
Inventory Core ProductYES
General
Additional NotesCuttable to 38mm diameter
