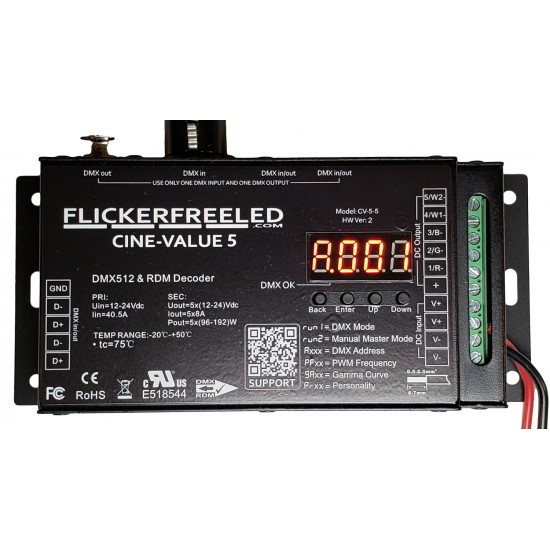

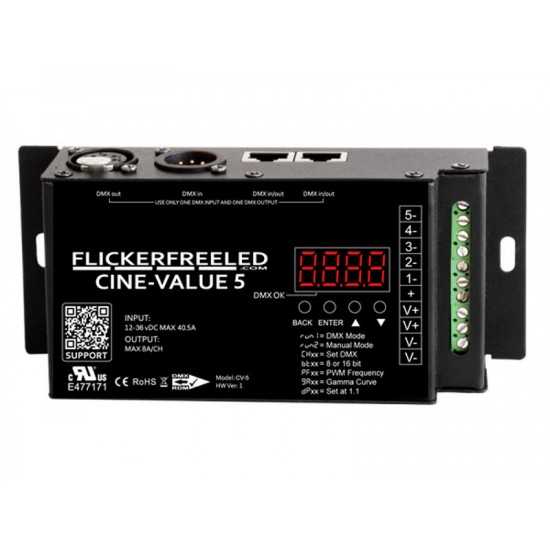

Cine-Value 5 LED Dimmer
- Brand: Project SSSHH Incorporated
- Model: CV-5-5
- Ship Weight: 485.00g
- Ship Dimensions: 7.50cm x 3.75cm x 1.88cm
- MPN: CV-5-5
Available Options
Cine-Value 5 Quantity Discounts Available
Buy 50 or more Cine-Value 5 dimmers and receive a 5% discount.
*Discounts applied in cart
Although the Cine-Value 5 does not have the low end performance, or a few of the other useful features that make our ProSpeed 4 such a fantastic dimmer, you will find the Cine-Value 5 just as capable as any of our competitors 5 channel LED dimmers. This dimmer offers great bang for the buck for our budget conscious customers.
The Cine-Value 5 is a fully capable flicker-free LED dimmer safe to use on film and television sets. Our Cine-Value line's performance is equal to our competitor's "higher end" 5 channel LED dimmers in every respect.
As with all FLICKERFREELED.COM products we have made some changes to this dimmer that make it a great choice for the film and television community. We have removed all PWM frequencies below 7kHz in order to ensure that you are camera safe on major rolling shutter professional cameras. PWM frequencies are available up to 35kHz for those that are shooting high frame rates and need to remain flicker-free.
8-bit and 16-bit resolution, 2 or 5 channel control modes, built in strobe effects and a master dimming control channel are all available using our 16 easily selectable personalities.
Full RDM functionality is enabled, including:
- Remote DMX addressing
- Remote personality selection
- Remote dimming (Gamma) curve selection
- Remote PWM Frequency selection
- Individual 32 character device label can be stored via RDM
- and more
Manual Master Mode allows you to playback pre-programmed effects or control individual outputs manually while transmitting DMX to other Cine-Value 5 dimmers.
NOW INTRODUCING THE CLASS 1 SPEEDBOX FOR CINE-VALUE 5
The SpeedBox completely closes the connector end of the CineValue-5 dimmer making it a completely certified Class 1 device (certification is currently pending.)
They are made to retrofit on existing systems without removing connectors from your cables and can be opened easily for troubleshooting purposes.
Please note that the SpeedBoxes come as a separate item and are quick to assemble onto the CineValue-5.
For further information on the SpeedBox for CineValue-5 please contact us.
For more information please download and read the manual available on the downloads page.This dimmer is a fantastic choice for the budget conscious consumer.
| Power Input / Output | |
| Power Input | 12vDC to 24vDC |
| Power Consumption (Typ.) | 40a Maximum |
| Power Output | 12vDC to 24vDC (Vin = Vout) |
| Data Input / Output | |
| DMX Input | XLR-5, RJ-45 or 5.08mm pluggable header (not included) - USE ONLY ONE INPUT |
| DMX Output | XLR-5, RJ-45 OR 5.08mm pluggable header (not included) | Not isolated (use only one output) |
| LED Dimmer Specifications | |
| Dimming Type | High Frequency PWM for Constant Voltage LED |

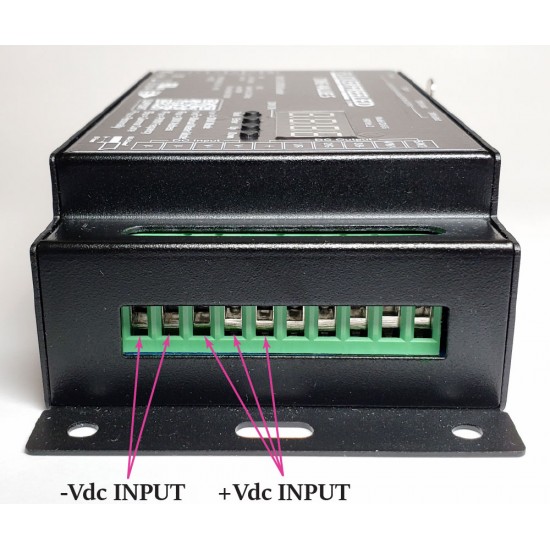

| Power Input Connector | Screw Terminals (20a maximum per position) |

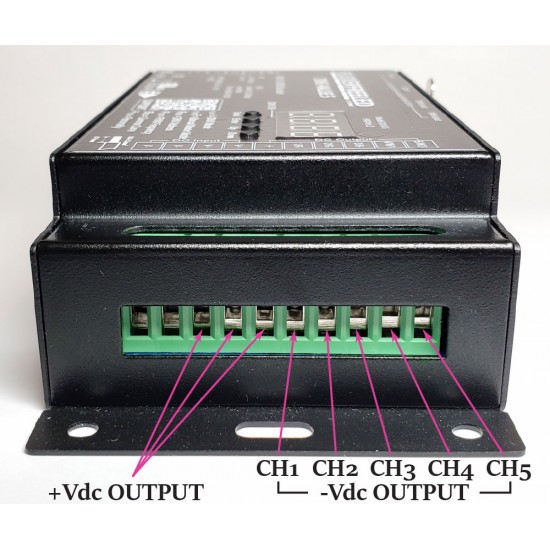

| Power Output Connector | Screw Terminals (20a maximum per position) |
| Output Channels | 5 |
| Maximum Amps/Channel | 8a maximum |
| Output Protection | PCB mounted fuses and software short circuit protection |
| Control Type | DMX-512A or Manual |
| Shipping Dimensions and Weights | |
| Length | 178mm (7in) |
| Width | 84mm (3.25in) |
| Height | 44mm (1.75in) |
| Weight (Typ.) | 430 grams (15.1 ounces) |
| Certifications | |
| Electrical Certifications | UL E518544
|
| Core Product | |
| Inventory Core Product | YES |
| File | Size | |
|---|---|---|
| Cine-Value 5 Manual v1.0.pdf | 975.6KB | Download |
