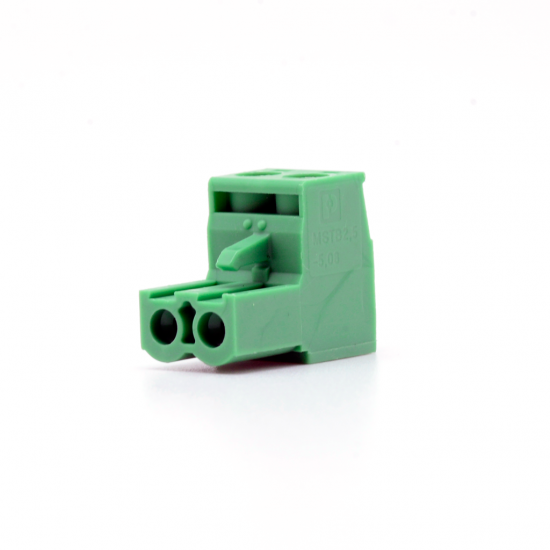

2 conductor 5.08mm Female

Core Product

2 conductor 5.08mm Female

Brand: Phoenix Contact Limited
Model: PC-508-2PF
Ship Weight: 3.36g
Ship Dimensions: 18.30mm x 10.16mm x 15.00mm
MPN: 1757019

$1.50

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Updated Pricing!

The true and original Phoenix Contact 2 conductor socket connector is the perfect connector for creating custom fixtures and extensions. The flexibility offered by it's robust screw terminals in unmatched.

This is the original Phoenix Contact part number 1757019, no offshore imitations! Choose Phoenix Contact for their fantastic build quality, best Quality Assurance in the business and their Canadian and US UL Certification. Accept no imitations!

Connector and Adapter Specifcations
Number of Positions	2
Connector Gender	Female
Pitch	5.08mm
Conductor Sizes	28 - 12 AWG
Nominal Current	15a
Rated Voltage	300V
Flammability Rating	V0 to UL 94 standard
Screw Type	3mm Slot
Torque Value	0.5 - 0.6 Nm
Wire Stripping Length	7mm (0.28in)
Shipping Dimensions and Weights
Length	18.3mm (0.72in)
Width	10.16mm (0.4in)
Height	15mm (0.59in)
Weight (Typ.)	3.36 grams
Certifications
Electrical Certifications	CSA (File Number: 013631_0_000) cRUus (File Number: E60425)
Core Product
Inventory Core Product	YES
General
Additional Notes	In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
