$90.00

Available Options

Introducing the new PRO-L16

The 12W and 8W 12vDC RGB+Tungsten or RGB+Daylight versions are now available!

The PRO-L16 is a camera safe colour tunable LED MR-16 fixture that is available in RGB+Tungsten and RGB+Daylight versions which can be dimmed flicker-free with any camera safe PWM LED dimmer.

Available in RGB+Tungsten and RGB+Daylight versions, with either 12 Watt or 8 Watt LED engines, the PRO-L16 is the MR16 replacement of the future. The white emitter is >93 CRI and offers great quality white light, and the RGB engine allows you to mix any colour you desire to really increase your colour palate.

The RGB engine is the same in both the 12W and 8W versions and the high CRI white emitter in the 12W version has more punch than the high CRI 8W version. Click "specifications" for detailed information.

You can daisy chain 7 of the 8W PRO-L16s or 5 of the 12W PRO-L16s to a Class 2 12Vdc power supply and they are designed to fit into most preexisting MR16 trim rings.

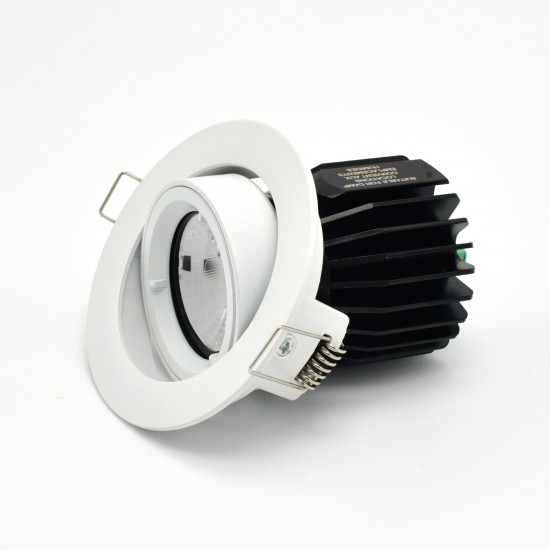

Our Type A ring is a white flush mount gimbaled mounting option that fits into a  3-1/8" hole.

The PRO-L16 is dimmable using standard PWM LED Dimmers and is camera safe when used with a camera safe PWM LED Dimmer.

**Class 2 Power Supply required.
**NOTE**
All test results and images, and specifications are typical readings of one production run. Although we strive to match these as closely as possible each production run the specifications are subject to change based on availability.

Power Input / Output
Power Input12Vdc Class 2
Power Consumption (Typ.)

12 watt fixture = 1A

8 watt fixture = 0.7A

Connector and Adapter Specifcations
Input Connector3.81mm Pluggable header
LED Engine Details
Colour Temperature

RGB+Daylight White = 6000K

RGB+Tungsten White = 2700K

Colour Rendering Index (CRI)Whites >93
LED Emitter Wattage

Emitter12W Fixture
8W Fixture
Red
1.99 watts
1.97 watts
Green
1.98 watts
1.98 watts
Blue
1.97 watts
1.97 watts
Tungsten
6.3 watts
1.98 watts
* typical
LED Emitter Lumens
Emitter
12W Fixture
8W Fixture
Red
2600
2400
Green
3200
3220
Blue
1160
1160
Tungsten
7150
2270
* typical
Case Attributes
Case MaterialAluminum
Mounting OptionsDesigned to work with most existing MR-16 mounting rings.
Product Dimensions and Weights
Length

8 watt:
2in (50mm) max OD
1.875in (47.5mm) lens hole

12 watt:
2.5in (63mm) max OD
1.875in (47.5mm) lens hole

Ring A:
3.75in (95mm)trim ring OD
3.125in (80mm) hole

Width

8 watt:
2in (50mm) max OD
1.875in (47.5mm) lens hole

12 watt:
2.5in (63mm) max OD
1.875in (47.5mm) lens hole

Ring A:
3.75in (95mm)trim ring OD
3.125in (80mm) hole

Height

8 Watt nose lip to wire clearance: 3.625in (92mm)
12 Watt with wire clearance: 4in (100mm)

Weight (Typ.)

8 Watt: 0.31lb (142g)
8 Watt with Ring A: 0.5lb (225g)
12 Watt: 0.373lb (169g)
12 Watt with Ring A: 0.6lb (252g)

Shipping Dimensions and Weights
Length

8 watt:
12 watt: 2.625in (70mm)
Ring A: 4in (100mm)

Width

8 watt:
12 watt: 2.625in (70mm)
Ring A: 4in (100mm)

Height

8 watt:
12 watt: 3.625in (90mm)
Ring A: 1.875in (45mm)

Weight (Typ.)

8 watt:
12 watt: 0.42lb (190g)
Ring A: 0.24lb (107g)

Certifications
Electrical Certifications

QPS LPC75237-2
CSA C22.2 No. 250.0-18
UL 1598
CSA C22.2 No. 250.13-17
UL 8750

Core Product
Inventory Core ProductYES
General
Additional Notes

Lens Beam Angle: 36 degree

*other lens options are available but not stocked - contact us for details
