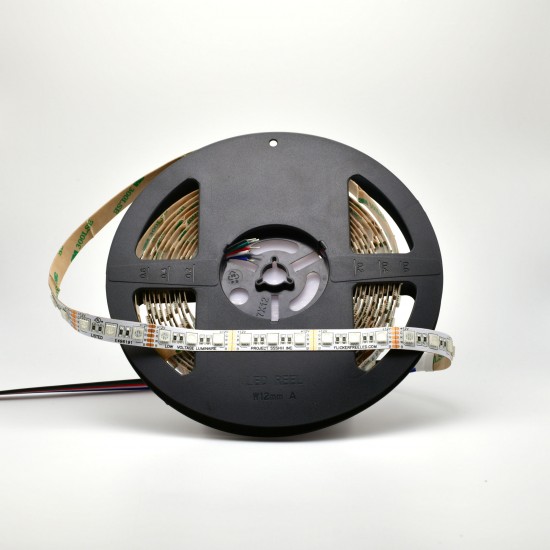

12V ProColour RGBA Single Chip LED Ribbon - 5m
- Brand: Project SSSHH Incorporated
- Model: RGBA-72-12v-1
- Ship Weight: 198.00g
- Ship Dimensions: 8.25in x 9.25in x 0.63in
Using the latest in all-in-one colour mixing led emitters, ProColour RGBA ribbon uses a single chip to deliver a full spectrum of bright colourful light. The additional Amber emitter allows for better colour depth and provides a more even distribution of colour in the red-amber wavelengths.
At 72 emitters per meter this product offer fantastic brightness right alongside that even colour distribution.
As with all of our CORE PRODUCT ribbons, ProColour 12V RGBA ribbon comes with 0.5m of wire at both ends to allow you to customize your ribbon installation quickly and efficiently.
4 channel starter wire is available as a CORE PRODUCT if you require more than two starter leads.
This product is UL Listed in the US and Canada.
For more information check out the specifications tab.
Power Input / Output | |
Power Input | 12vDC - 0.5m bare wires both ends of ribbon |
Power Consumption (Typ.) | 2.0 amps per meter (combined) |
LED Ribbon Details | |
Length of Roll | 5m |
Emitters Per Meter | 72 |
PCB Width | 12mm (0.5in) |
Colour Temperature | Not Applicable |
Colour Rendering Index (CRI) | Not Applicable |
Minimum Cut Distance | 41mm (1.6in) |
Maximum Recommended Length | 16 feet (5m) per 5a channel | 25 feet (8m)* per 8a channel |
Adhesive Backing | YES - 3M |
Shipping Dimensions and Weights | |
Length | 234.95mm (9.25in) |
Width | 210mm (8.25in) |
Height | 15.9mm (0.625in) |
Weight (Typ.) | 198 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
