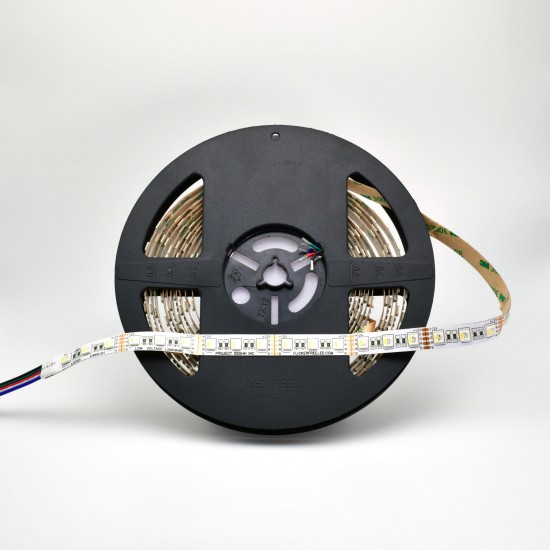

12V ProColour RGBW Single Chip LED Ribbon - 5m

Core Product 12Vdc

Brand: Project SSSHH Incorporated
Model: RGBW-72-12v-1
Ship Weight: 198.00g
Ship Dimensions: 8.25in x 9.25in x 0.63in

$180.00

Available Options

Emitter Colour

RGB+T

RGB+D

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Using the latest in colour mixing led emitters, ProColour RGBW ribbon uses a single chip to deliver a full spectrum of bright colourful RGB light and your choice of Daylight or Tungsten emitter at 90+ CRI adds a nice clean white to your RGB full spectrum mix.

At 72 emitters per meter we offer fantastic brightness with that even colour distribution.

Power Input / Output
Power Input	12vDC - 0.5m bare wires both ends of ribbon
Power Consumption (Typ.)	2.0 amps per meter (combined)
LED Ribbon Details
Length of Roll	5m (16.4 ft)
Emitters Per Meter	72
PCB Width	12mm (0.5in)
Colour Temperature	RGB+WW - White Emitter 2700K RGB+CW - White Emitter 6000K
Colour Rendering Index (CRI)	RGB+WW - White Emitter >90 RGB+CW - White Emitter >90
Minimum Cut Distance	41mm (1.6in)
Maximum Recommended Length	16 feet (5m) per 5a channel \| 25 feet (8m)* per 8a channel
Adhesive Backing	YES - 3M
Shipping Dimensions and Weights
Length	234.95mm (9.25in)
Width	210mm (8.25in)
Height	15.9mm (0.625in)
Weight (Typ.)	198 grams
Certifications
Electrical Certifications	cULus E496191 - Low Voltage Luminaire
Core Product
Inventory Core Product	YES
General
Additional Notes	*We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes.
