12V ProColour Vari-White Ribbon
- Brand: Project SSSHH Incorporated
- Model: VW-120-12-5m
- Ship Weight: 148.00g
- Ship Dimensions: 8.50in x 9.50in x 0.63in
Available Options
Our

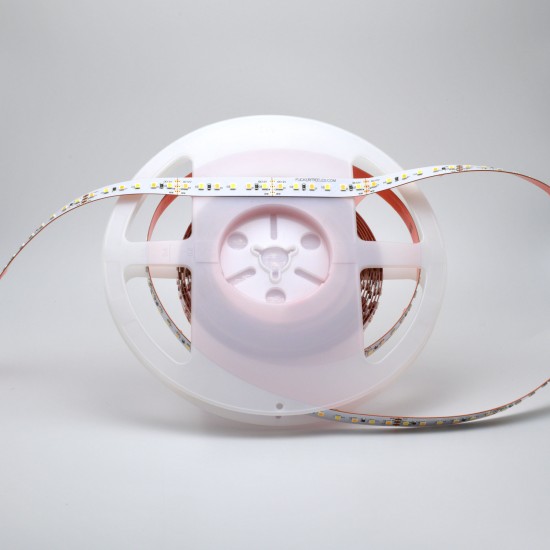

12vDC ProColour variable white colour correct flexible LED ribbon is a colour temperature adjustable LED ribbon. It offers amazing colour rendition from tungsten through to daylight in a small
and flexible form factor.
At 120 emitters per meter our ribbon offers fantastic light distribution and is punchy and bright. Well built with 3oz flexible PCB and high quality light emitting diodes with a CRI of >95 and zero green shift these are made to reliably throw high quality light.
0.5m bare end wire preinstalled on both ends of the ribbon means you won't need to de-solder and replace short bare wire extensions, or solder wire onto the cut end of the ribbon, saving you time and money.
Due to chip shortages we are now offering a Black Stripe Edition of our VW-120 ribbon. Classic edition VW-120 is unavailable until further notice.
The Black Stripe Edition ribbon has a higher CRI and TLCI than our original Variable White ribbon. The cool white emitters have a slightly cooler Kelvin temperature than our Classic Edition Ribbon at 5750K (BSE) vs 6000K (Classic.) A highly capable variable white ribbon with no green/magenta shift present. For further information please check the specifications page, or contact us.
Power Input / Output | |
Power Input | 12vDC - 0.5m bare wires on both ends |
Power Consumption (Typ.) | 1.6 amps per meter (both colours) |
LED Ribbon Details | |
Length of Roll | 5m |
Emitters Per Meter | 120 (60 Tungsten, 60 Daylight - alternating) |
PCB Width | 12mm (1/2in) |
Colour Temperature | VW Classic: Variable 3000K > 6000K VW Black Stripe Edition: 3000K > 5750K |
Colour Rendering Index (CRI) | VW Classic: Tungsten >95 (Ra98) |Daylight >95 (Ra95) VW Black Stripe Edition: Tungsten >97 (Ra98) |Daylight >96 (Ra95) |
Minimum Cut Distance | 50mm (2in.) |
Maximum Recommended Length | 20.5 feet (6.25m)* split on two 5a channels | 32 feet (10m)* split on two 8a channels |
Adhesive Backing | YES - 3M |
Shipping Dimensions and Weights | |
Length | 9.5in |
Width | 8.5in |
Height | 0.625in |
Weight (Typ.) | 148 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
