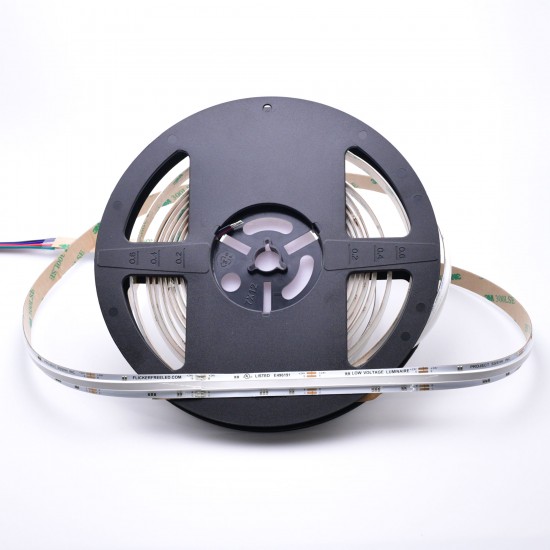

24V ProColour-24 RGB Linear COB LED Ribbon - 5m
- Brand: Project SSSHH Incorporated
- Model: RGB-COB-24-1
- Ship Weight: 150.00g
- Ship Dimensions: 8.25in x 9.25in x 0.63in
- MPN: RGB-COB-24-1
24
This 24Vdc RGB Linear COB LED Strip uses continuous lines of Red, Green and Blue emitters behind an onboard silicone diffuser. This gives you an almost completely continuous line of colour leading to a large number of interesting uses.
No other RGB ribbon offers the emitter density of a COB ribbon. The silicone diffused "lens" is only 4.8mm (0.19in) wide and can be viewed directly leading to a number of creative installation possibilities.
This COB led strip can be pulled into a our silicone diffuser and give you a continuous RGB Neon effect.
As one of our CORE PRODUCT ribbons it comes with 0.5m bare end wire preinstalled on both ends, which means you won't need to de-solder and replace short bare wire extensions, or solder wire onto the cut end of the ribbon, saving you time and money.
This product is UL Listed in the US and Canada.
Check out the specifications tab for more information.
Power Input / Output | |
Power Input | 24Vdc - 0.5m bare wires both ends of ribbon |
Power Consumption (Typ.) | 0.63 amps per meter (combined) |
LED Ribbon Details | |
Length of Roll | 5m |
Emitters Per Meter | Linear COB (N/A) |
PCB Width | 12mm (0.5in) |
Colour Temperature | Not Applicable |
Colour Rendering Index (CRI) | Not Applicable |
Minimum Cut Distance | 55.5mm (2.18in) |
Maximum Recommended Length | 16 feet (5m) per 5a channel | 32 feet (8m)* per 8a channel |
Adhesive Backing | YES - 3M |
Shipping Dimensions and Weights | |
Length | 234.95mm (9.25in) |
Width | 210mm (8.25in) |
Height | 15.9mm (0.625in) |
Weight (Typ.) | 150 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
