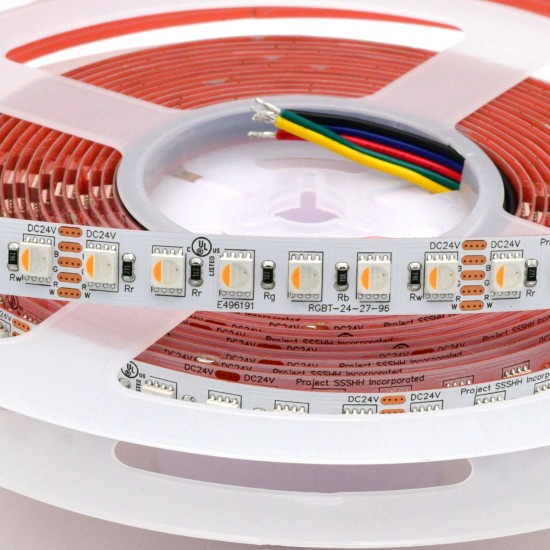

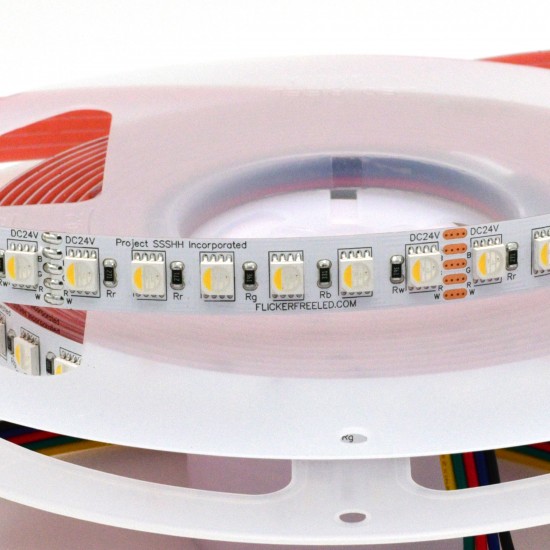

24V ProColour-24 RGBW 96/m Single Chip LED Ribbon - 5m
- Brand: Project SSSHH Incorporated
- Model: RGBW-24-1
- Ship Weight: 210.00g
- Ship Dimensions: 8.25in x 9.25in x 0.63in
Available Options
24
Introducing our new ProColour-24 24Vdc 96/m All-in-one RGBW Ribbons!
Available in RGB+Tungsten (2700K), RGB+Neutral White (4000K) and RGB+Daylight (6000K) formulations, our new 24Vdc 96 emitters per meter all-in-one full spectrum LED ribbons are now available for order. Offering full spectrum RGB colour mixing with high-CRI whites allows you to easily create the lighting look of your desires by mixing from millions of high quality colours.
At 96 emitters per meter density you will get high powered and even colour distribution, which makes it perfect for close to surface lighting applications. The high density makes this ribbon perfect for pulling into our silicone diffusers or using inside of our aluminum extrusion diffusers for evenly distributed and consistent lighting.
As with all of our CORE PRODUCT ribbons, ProColour-24 RGBA ribbon comes with 0.5m of wire at both ends to allow you to customize your ribbon installation quickly and efficiently.
4 channel starter wire is available as a CORE PRODUCT if you require more than two starter leads.
These strips are UL listed in Canada and the US.
For more information check out the specifications tab.
Product Selector:
RGB+2700K White: RGB+T
RGB+4000K White: RGB+NW
RGB+6000K White RGB+D
Power Input / Output | |
Power Input | 24Vdc - 0.5m bare wires both ends of ribbon |
Power Consumption (Typ.) | 1.3 amps per meter (combined) |
LED Ribbon Details | |
Length of Roll | 5m (16.4 ft) |
Emitters Per Meter | 96 |
PCB Width | 12mm (0.475in) |
Colour Temperature | RGB+T - White Emitter 2700K |
Colour Rendering Index (CRI) | RGB+T - White Emitter 90+ |
Minimum Cut Distance | 61.5mm (2.42in) |
Maximum Recommended Length | 16 feet (5m) per 5a channel | 25 feet (8m)* per 8a channel |
Adhesive Backing | YES - 3M |
Shipping Dimensions and Weights | |
Length | 234.95mm (9.25in) |
Width | 210mm (8.25in) |
Height | 15.9mm (0.625in) |
Weight (Typ.) | 210 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
