24V ProColour 364/m Variable White Ribbon
- Brand: Project SSSHH Incorporated
- Model: VW-364-24-1
- Ship Weight: 125.00g
- Ship Dimensions: 7.50in x 8.25in x 0.55in
- MPN: VW-364-24-1
24
Our 24Vdc ProColour-24 VW364 variable white colour correct flexible LED ribbon offers outstanding single row LED density. At 364 emitters per meter it offers an almost continuous row of LED emitters for high density applications.
Don't let the size of the emitters fool you, this ribbon is slightly brighter than our 12Vdc 120/m Vari-white ribbon and it really packs a punch! ProcColour-24 VW364 offers amazing colour rendition from tungsten through to daylight in a small and flexible form factor.
At 364 emitters per meter our ribbon offers fantastic light distribution and is punchy and bright. Due to the quantity and size of the LED emitters this ribbon uses an ultra flexible 2oz PCB. The high quality light emitting diodes with a CRI of >96 and near zero green shift these are made to reliably throw high quality light.
As one of our CORE PRODUCT ribbons 0.5m bare end wire preinstalled on both ends of the ribbon means you won't need to de-solder and replace short bare wire extensions, or solder wire onto the cut end of the ribbon, saving you time and money.
Of course if you need more than two segments with starter wire then we stock 2 channel starter wire as a CORE PRODUCT.
This product is UL Listed in the US and Canada.
Check out the specifications tab for more information.
VW364-24 2800K Spectrum | VW364-24 6500K Spectrum |
VW364-24 2800K TM-30-18 | VW364-24 6500K TM-30-18 |

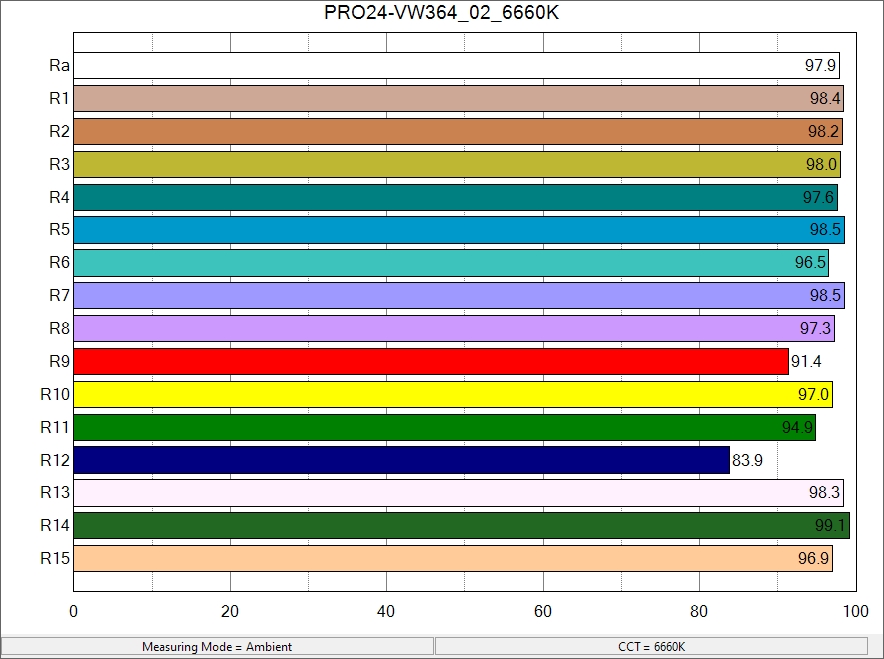

VW364-24 6500K CRI 96.7 | VW364-24 6500K CRI 97.9 |
Power Input / Output | |
Power Input | 24Vdc - 0.5m bare wires on both ends |
Power Consumption (Typ.) | 0.8 amps per meter (both colours) |
LED Ribbon Details | |
Length of Roll | 5m |
Emitters Per Meter | 364 (182 Tungsten, 182 Daylight - paired) |
PCB Width | 10mm (0.39in) |
Colour Temperature | Variable 2800K > 6500K |
Colour Rendering Index (CRI) | Tungsten >96.5 (Ra96.7) |Daylight >97 (Ra97.9) |
Minimum Cut Distance | 39mm (1.54in.) |
Maximum Recommended Length | 32 feet (6.25m)* split on two channels |
Adhesive Backing | YES - Tesa |
Shipping Dimensions and Weights | |
Length | 8.25in |
Width | 7.5in |
Height | 0.55in |
Weight (Typ.) | 125 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
