24V ProColour-24 Variable White Linear COB LED Ribbon - 5m
- Brand: Project SSSHH Incorporated
- Model: VW-COB-24-1
- Ship Weight: 150.00g
- Ship Dimensions: 19.00cm x 21.00cm x 1.25cm
- MPN: VW-COB-24-1
24
This 24Vdc Variable White Linear COB LED Strip uses alternating Warm White and Cool White LED emitters behind an onboard diffuser. This gives you an almost completely continuous line of Variable (CCT) White, leading to a large number of interesting uses.
The COB ribbon features extremely high emitter density and the emitters are covered with an onboard flexible diffusion "lens" which can be viewed directly on camera. Fantastic inside of our silicone diffusion or by itself directly on camera.
Featuring short cut distances of around 1 inch (28.2mm) this ribbon will fit accurately where you need it.
As one of our CORE PRODUCT ribbons 0.5m bare end wire preinstalled on both ends of the ribbon means you won't need to de-solder and replace short bare wire extensions, or solder wire onto the cut end of the ribbon, saving you time and money.
Of course if you need more than two segments with starter wire then we stock 2 channel starter wire as a CORE PRODUCT.
This product is UL Listed in the US and Canada.
Check out the specifications tab for more information.
VW-COB-24-1 2800K Spectrum | VW-COB-24-1 6500K Spectrum |
VW-COB-24-1 2700K TM-30-18 | VW-COB-24-1 6500K TM-30-18 |

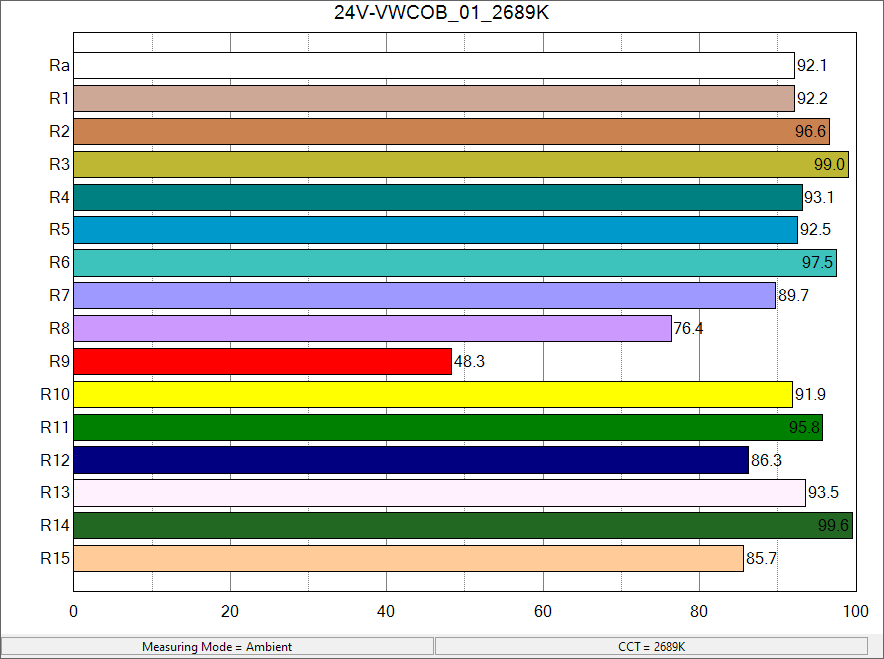

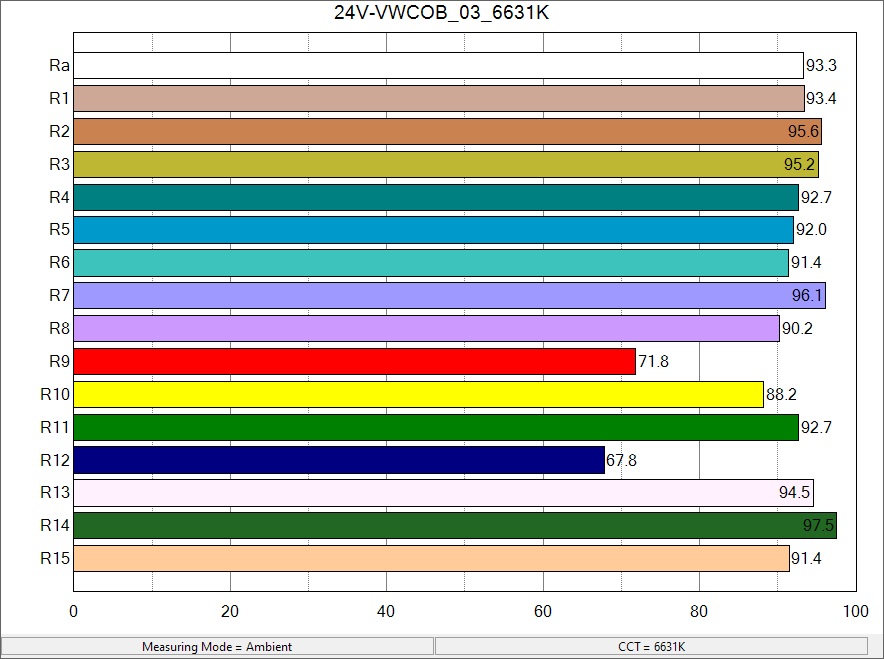

VW-COB-24-1 2700K CRI >92 | VW-COB-24-1 6500K CRI >93 |
Power Input / Output | |
Power Input | 24Vdc - 0.5m bare wires both ends of ribbon |
Power Consumption (Typ.) | 0.625 amps per meter (combined) |
LED Ribbon Details | |
Length of Roll | 5m |
Emitters Per Meter | Linear COB (576/m) |
PCB Width | 10.1mm (0.4in) |
Colour Temperature | 2700K (Warm White) > 6500K (Cool White) |
Colour Rendering Index (CRI) | >92 (Warm White) >93 (Cool White) |
Minimum Cut Distance | 28.2mm (1.1in) |
Maximum Recommended Length | 16 feet (5m) per 5a channel | 32 feet (8m)* per 8a channel |
Adhesive Backing | YES - TESA |
Shipping Dimensions and Weights | |
Length | 190mm (7.48in) |
Width | 210mm (8.25in) |
Height | 12.5mm (0.5in) |
Weight (Typ.) | 130 grams |
Certifications | |
Electrical Certifications | cULus E496191 - Low Voltage Luminaire |
Core Product | |
Inventory Core Product | YES |
General | |
Additional Notes | *We recommend calculating your maximum lengths and factor in any line loss from extension cables you are using to meet your local electrical codes. |
